分流器特征Features
l 高精度High Precision
l 电阻温度系数TCR±40ppm/℃
l 通过电流 Through current 5A-100A
l 银焊工艺Silver brazing process
l 耐高温Flameproof
l 电感小于10纳亨Low Inductance
l 引脚镀锡易于焊锡Solderable copper leads
l 符合R0HS要求lead-free
l 特殊规格可以订做
Special tight toleranceare available on request
电气参数Electrical Data
FLQ-U-10 | FLQ-U-2.5 | FLQ-U-1 | |
85℃时功率 Power rating at 85℃ watts | 10 | 2.5 | 1 |
阻值范围Resistance range ohms | 0R0007*to 0.001 | 0R00015to 0.0025 | 0R005to 0.01 |

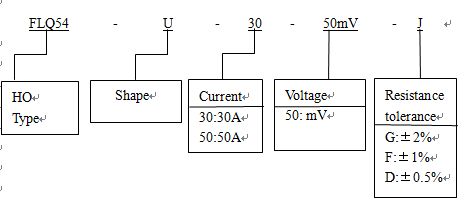

命名规则 Order Information

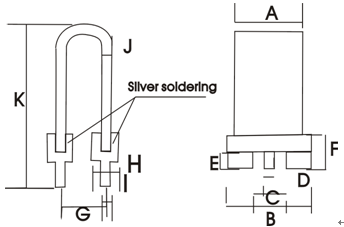

尺寸规格 Dimensions Data（mm）
Type | A | B | C | D | E | F | G | H | I | J | K |
100A 75mA | 12.7±0.2 | 18 | 5.6 | 1.6 | 3 | 3 | 8.4±1 | 3.1±0.2 | 1.6±0.5 | 1.6 | 22.7±1 |
100A 100mA | 12.7±0.2 | 18 | 5.6 | 1.6 | 3 | 3 | 8.4±1 | 3.1±0.2 | 1.6±0.5 | 1.6 | 33.8±1 |
50A 125mA | 11.1±0.2 | 18 | 5.6 | 1.6 | 3 | 3 | 8.4±1 | 3.1±0.2 | 1.6±0.5 | 1.6 | 51.0±1 |
10A 100mA | 5.3±0.2 | 18 | 5.6 | 1.6 | 3 | 3 | 8.4±1 | 3.1±0.2 | 1.6±0.5 | 1.0 | 62.8±1 |
工作特性 performance Data
TEST | CONDITIONS OF TEST | TEST LIMITS |
Thermal Shock | -55℃to150℃,100cycles ,15min at each extreme | ±（1.0%+0.0005Ω△R |
Shot time overload | 5xrated power for 5s | ±（0.5%+0.0005Ω）△R |
Low temperature storage | -65℃ for 45 min | ±（0.5%+0.0005Ω）△R |
High temperature expo-sure | 1000 h at +170℃ | ±（1.0%+0.0005Ω）△R |
Bias humidity | +85℃85% RH, 10% bias, 1000 h | ±（0.5%+0.0005Ω）△R |
Mechanical shock | 100 g’s for 6 ms, 5 pulses | ±（0.5%+0.0005Ω）△R |
Vibration | Frequency varied 10 Hz to 200 Hz in 1 min, 3directions,12h | ±（0.5%+0.0005Ω）△R |
Resistance to solder heat | 1000 h at + 70 ℃, 1.5 h“ON”, 0.5 h “OFF” | ±（1.0%+0.0005Ω）△R |
Resistance to solder heat | +260℃ solder,10s to12 s dwell, 25 mm/s emergence | ±（0.5%+0.0005Ω）△R |
Moisture resistance | MIL-STD-202, method 106, 0 % power, 7a and 7b not re-quired | ±（0.5%+0.0005Ω）△R |

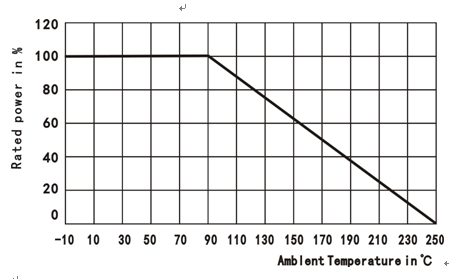

功率曲线 Power Deratin
电气性能 Electrical Features

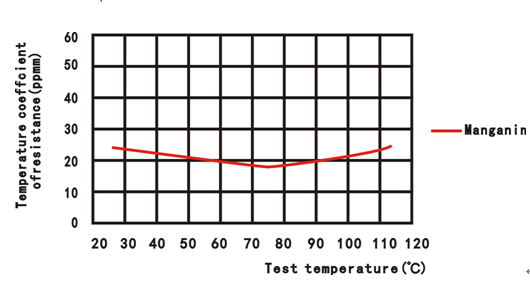

温度系数曲线 TCR Derating
应用范围 Applications
l 电流采样 Current Sensing
l 反馈电路 Feedback
l 低电感电路Low Inductance
l 大电流脉冲电路Surge and pulse
包装Packaging
l 散装，每包装1000PCS bulk, 1000PCS per package
